I was not all happy with my home made keyhole lock for my shims with my horseshoes. They never really kept them fully in place, and I had a hard time getting the shoulder hubs out!

So, I decided to make use of the leg to body hub, which basically hides most of the back of the leg around the top, and drilled and tapped for M6.

Three bolts going all the way through the leg and in to the horseshoe on the other side should be enough!

The bottom screws go straight into the thickest part of my horseshows, so they are really held in place firmly!

When screwed in place, it firmly holds the horseshoes in place and makes it even possible to use them while carrying the droid!

Second Pocket Vent:

Another thing I had that needed to be done, was my last pocket vent.

Again, I used my “can opener” technique described earlier when making this one.

Scoring the lines, then drilling holes in them

then using a pair of pliers and wiggling slightly before rotating the pliers and stripping the pieces off…

It makes the vent looking rather disastrous at first.. Oh my, can this really be saved?

Next step is to flatten this, and I made it with placing my metal ruler on top of the vent, and banging with a plastic hammer. This takes care of most of the dents, but the secret lies really in the sanding!

After sanding with my detail sander, first with 40 grit, then 240 grit, it is a bit gritty still..

Still pretty rough. Fortunately, wet sanding is my friend! After spending a couple of minutes with 400 and 800 grit, this is the result. Please note that I still haven’t even picked up a file to remove any irregularities after the “can-opener” procedure..

A little bit of filing, and then time to add the ribs and the pocket area.

The first few ribs go on…

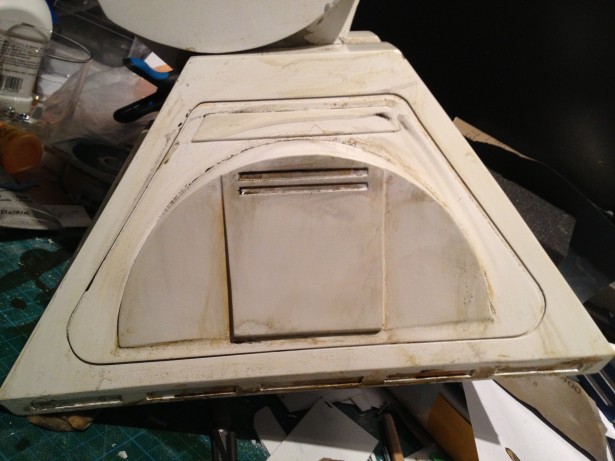

After all the ribs were in place, last thing left was to glue the painted back-end to the pocket vent, and glue it in place in the body! Last piece to go into the body! Woohoo!

Ankle Cylinder Endcaps:

After the pocket vent was done, I started working on a small detail piece. My ankle cylinders are lacking the end pieces, as I’ve made the cylinders from scratch, and detail work is always fun and never ends, so I decided to fix up two end pieces.

This end piece is made from three layers of 3mm styrene to make up the big piece. This is sanded down and glued on top of a 1mm styrene round piece that I cut around a bottle cap and sanded down earlier.

A quick test fit…

Two of these babies, and then time for the secret weapon: Aluminium tape!

Wrapping these is not all that easy, but the results are not too bad!

And in case you’re not sure I made them myself, check the back of the cylinder..

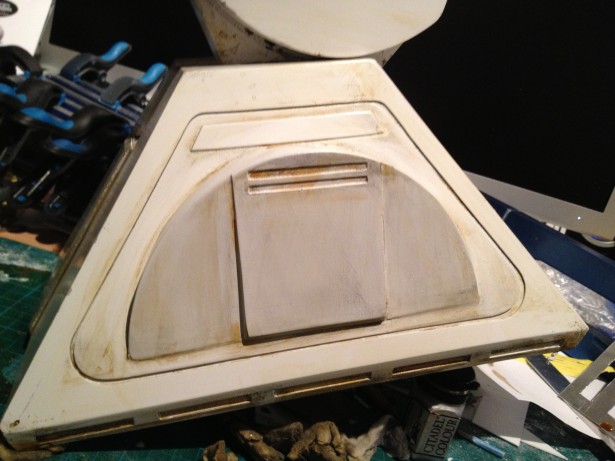

Last thing on the construction front was gluing the fina pocket vent and side vent in place, as well as securing the doors on the front. Once that was done, I masked up the front center vent and painted…
