Looking up R2’s skirt…

After a couple of days with the flu, and still done 2 gigs and a casting session (drawback of running your own company as a performer), I was finally starting to feel good enough to get some time to do some building.

I have my list of things to go through, but nothing on that list seemed appealing to me today.

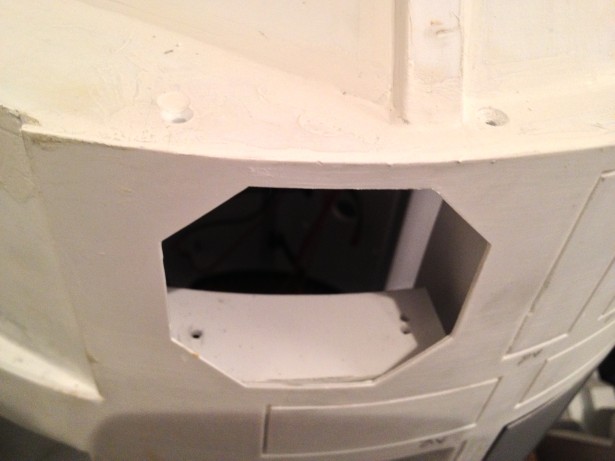

I did, however, start with drilling holes under the bottom plate of my droid, to have decent mount points for my octagon ports!

I took out the octagon ports, measured up on the bottom of the droid where the openings in the skins were, and then used a quick paper template in order to measure out where I needed to drill and countersink.

These will be underneath the droid, and will not be noticed. Technically speaking, I could glue countersunk M3 screws in place and bondo on top of them, if I don’t want the screws to be seen, but partly, I need to get the correct length screws, and partly, I don’t really see this as a problem at this point! =)

Another thing I got done while I had the droid upside down, was to treat the skirt with bondo (Tamaiya Putty, to be precise) to remove any irregularities. This will need to set until tomorrow and then sanded to smooth perfection!

After this has set and been sanded down, I think it will look just great! =)

I’m starting to run out of things to do until it is paint time… =)

By |2016-12-06T00:01:18+01:00September 22nd, 2012|R2-D2|Comments Off on Looking up R2’s skirt…
Read More

Small fixes

I’ve been battling a bad flue for the past couple of days, so needless to say, the droid has not been the first of my priorities!

However, I’ve managed to drag my cold sorry head off the couch for a little while today to do some small fixes…

I’ve done a few tweaks and things that were not on my list of things to do, started rerouting the electronics and bundling up the cables to make it nice and neat, ordered a new controller, bought a 11 pin connector through ebay, since I figured I’d just make one big connector to unplug whenever I need to pull out my electronics board.

I also decided to do something about my rear unpainted panel door, or rather the panel behind it!

First, I had to re-hinge the door, as the hinge was a bit.. well .. stiff, and I wanted this to be a lot smoother.

Second, I added a small mounting bar, so I could fasten the panel with screws, rather than glue it in place. After all, it is something that I might need to remove from time to time.

Third, the panel was quite boring, and I decided to do something about it!

I’m not claiming this was a stroke of genius inspiration, I do have a quite bad flu, but it will most definitely do for now!

It’s not a big thing, it’s only a bit of images printed out and glued to the white styrene…

When added into the slot and bolted in place, it looks quite ok, actually!

Not too bad for a sick guy =)



By |2016-12-06T00:01:19+01:00September 20th, 2012|R2-D2|Comments Off on Small fixes
Read More

The list of things to come…

So, even though my droid is starting to look pretty finished when it comes to construction, there is definitely a number of things that still needs to be fixed!

I’ve taken the liberty to create a “TODO” list.. or a R2-2DO list, as it were…

R2-2DO:
=======
Shoulders:

  • Fix ridges in second horseshoe
  • Finetune second shoulder shim
  • Dress second shim edges in aluminium tape
  • Prime second horseshoe
  • Fix small things that WILL be showing up after priming with Tamaiya Putty and sand
  • Skin second shoulder hub in aluminium

R2-D2 Dome:

  • Cut open dome under blank panel for easy access (thanks Edwardo)
  • Dremel out Aluminium PSI holder (front) for fitting of Teeces PSI.
  • Insulate Teeces PSI properly
  • Sand painted (primed blue) panels
  • Paint painted panels in proper colour!

Body:

  • Cut out side vents
  • Cut out pocket vents
  • paint pocket/side vents (blue)
  • Fix/adjust long doors on front to add another layer for stability.
  • Work on hinging doors on styrene frame
  • Make Charging Bay Insert
  • Make inside of “large door” on front.
  • Alter back unpainted panel to act as door for switching droid on and off (thanks Sigge)
  • Make unpainted panel door insert
  • Prime body and bondo/sand accordingly
  • sand/paint blue panel
  • sand/paint utility arms
  • mount utility arms properly (currently only stuck in place with velcro)
  • find aluminium power couplers!
  • paint octagon ports (blue)
  • paint coin slots (blue)

Skirt:

  • Bondo skirt properly
  • Prime skirt
  • bondo/sand as needed

Center Foot:

  • Cut out wooden thick shim for center foot, to raise droid slightly.
  • Attach wooden thick shim to frame (under skirt)
  • Add magnet holders to foot plates in order to stick them more firm onto the foot
  • Fix 3mm alu strips

Main Feet:

  • Skin “ridge” in both feet for better look
  • Prime and bondo right foot
  • Attach styrene pieces on inside foot shells for KHF’s to screw in to better.
  • Fix 3mm alu strips

Legs:

  • Insert metal tube in pivot point/mount on ankle
  • Add steel mount for magnetized shoulder hubs
  • Possibly sand holder for new, alu shoulder hubs for perfect fit
  • Fix/remake Ankle Cylinders
  • Fix Mount for Ankle Cylinders
  • Fix Mount for Ankle Wedges
  • Fix Mount for Ankle Cylinder Holders
  • Paint Ankle Cylinders
  • Paint Ankle Wedges
  • Prime Ankle Cylinder Holders
  • Prime legs
  • Bondo/sand as needed.

PAINT THE WHITES! *woohoo*
Weather and enjoy a complete droid!

Future Work:
Dome:

  • Sand top part of split inner dome further for better fit
  • Cut inner dome pie panels for Life Support Scanner and Periscope

Secondary Dome:

  • Fix faulty FLD.
  • Cut holes for FLD, RLD
  • Drill holes for PSI and HP’s
  • Mount HP’s
  • Mount PSI’s
  • Mount FLD&RLD
  • Find and drill holes for rockler mount
  • Mask for blue panels
  • prime and paint blue panels
  • Fix unique sound scheme for secondary identity!
By |2016-12-06T00:01:25+01:00September 14th, 2012|R2-D2|Comments Off on The list of things to come…
